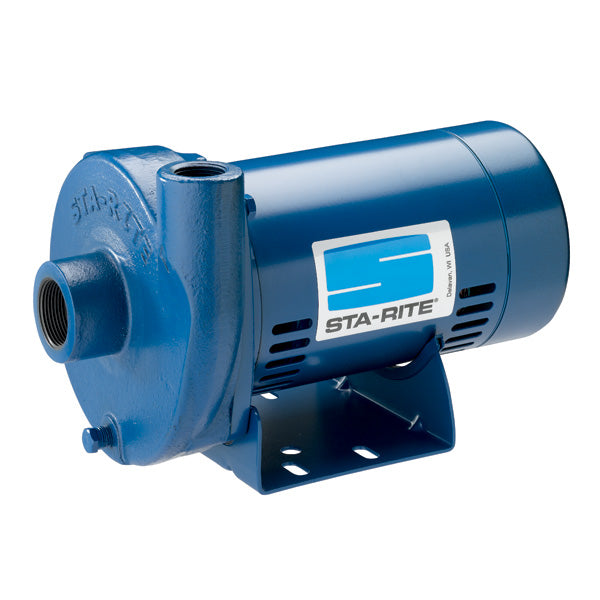

Sta-Rite JBHF3 1 1/2 H.P. 3/220-460V, Centrifugal Pressure Boosting Pump with a 1" discharge.

SKU: JBHF3
$1,349.00 $2,249.14
Shipping calculated at checkout.
  • 110% Price Match Guarantee
  • Free Shipping
  • Hassle Free Returns
Product Specifications

BODY CONSTRUCTION:  Cast Iron

HORSEPOWER:  1-1/2 HP

MAXIMUM CAPACITY:  70 GPM

FLOW at 10' LIFT and 30 PSI:  48 GPM

MAX LIFT:  25'

Suction: 1.25" NPT (threaded)
Horse Power: 1.5
Voltage: Three Phase
Discharges: 1” NPT
Application: Pressure Booster, Condensate Return Pumps, Boiler Feed Pumps, Water Transfer
Ships Within: Same Day!
Country Of Manufacture: US

Delivery and Shipping

Because of our vast inventory, 99% of all orders placed before 3:30PM EST (on weekdays, holidays do not apply), on our website or over the phone will be shipped the same day. We ship all of our products via UPS and as always, all orders over $ 250 will ship free of charge.Free Shipping does NOT apply to Hawaii or Alaska. Free Shipping on LTL orders (items over 100lbs) , does not include liftgate service, lift gate service would be billed to customer from shipping company.

Description

BODY CONSTRUCTION: Cast Iron

HORSEPOWER: 1-1/2 HP

MAXIMUM CAPACITY: 70 GPM

FLOW at 10' LIFT and 30 PSI: 48 GPM

MAX LIFT: 25'


High Head Centrifugal Pump, 1-1/2 HP, 70 GPM, 208-230/460V, 3 Phase, Silicon Bronze Impeller, 1-1/4" Suction, 1" Discharge
J/JB Series and other Sta-Rite Industries centrifugal pumps can be ordered with T.E.F.C. motors, and with other design characteristics. J Series with Noryl¨ impellers is abrasion-resistant for normal applications with working temperatures to 140 degrees Fahrenheit.
KEY FEATURES
  • Drain port provides for easy winterizing
  • Series delivers up to 140' of head, with flow rates up to 90 GPM (see individual models for specifics)
  • Replaceable wear ring and simple back pull-out design provide easy serviceability
  • Silicon bronze impellers and shaft seals allow use with water up to 125°F

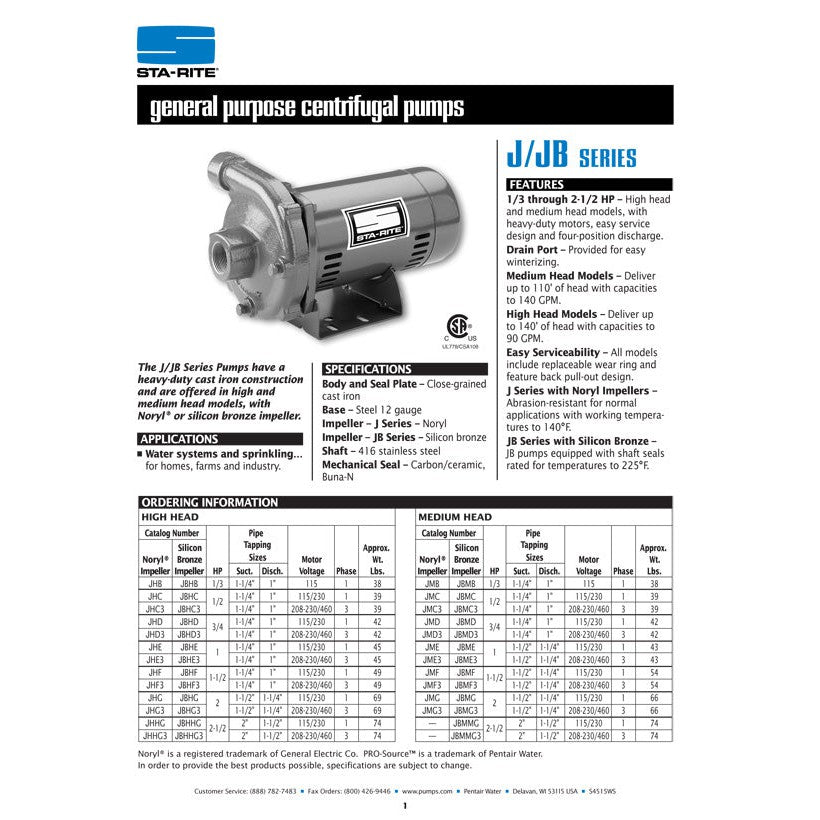

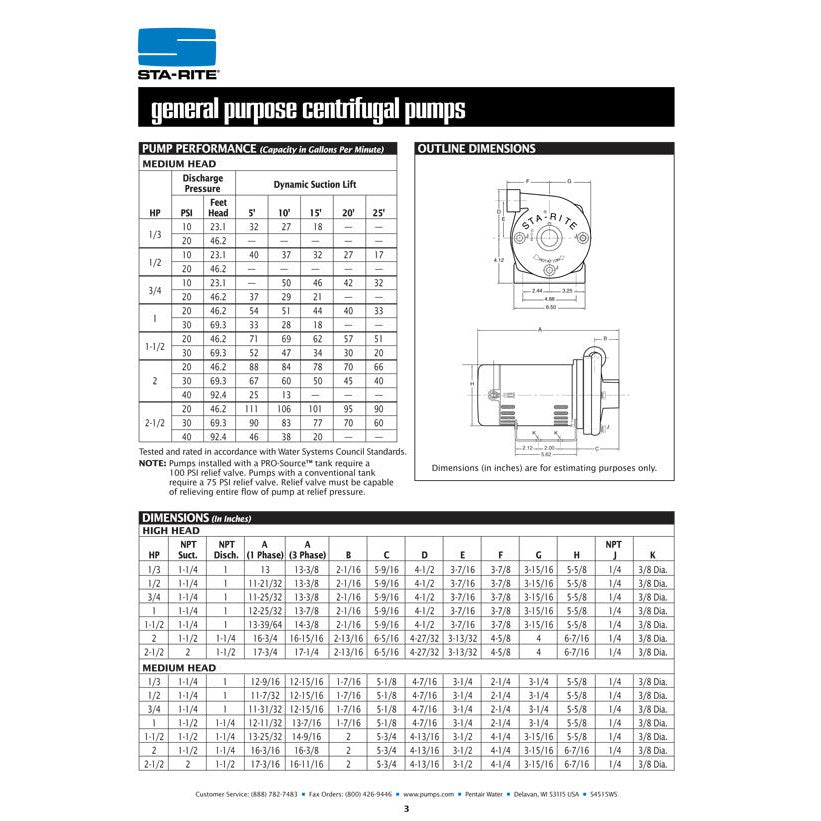

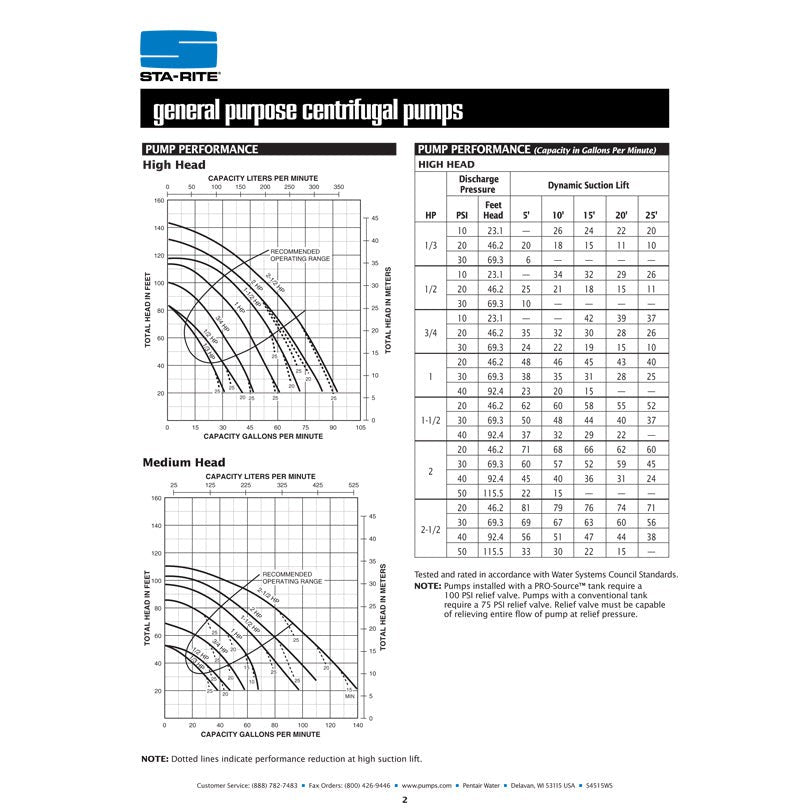

Document
JBHF3
Sta-Rite Pump

Sta-Rite JBHF3 1 1/2 H.P. 3/220-460V, Centrifugal Pressure Boosting Pump with a 1" discharge.

$1,349.00 $2,249.14

BODY CONSTRUCTION: Cast Iron

HORSEPOWER: 1-1/2 HP

MAXIMUM CAPACITY: 70 GPM

FLOW at 10' LIFT and 30 PSI: 48 GPM

MAX LIFT: 25'


High Head Centrifugal Pump, 1-1/2 HP, 70 GPM, 208-230/460V, 3 Phase, Silicon Bronze Impeller, 1-1/4" Suction, 1" Discharge
J/JB Series and other Sta-Rite Industries centrifugal pumps can be ordered with T.E.F.C. motors, and with other design characteristics. J Series with Noryl¨ impellers is abrasion-resistant for normal applications with working temperatures to 140 degrees Fahrenheit.
KEY FEATURES
  • Drain port provides for easy winterizing
  • Series delivers up to 140' of head, with flow rates up to 90 GPM (see individual models for specifics)
  • Replaceable wear ring and simple back pull-out design provide easy serviceability
  • Silicon bronze impellers and shaft seals allow use with water up to 125°F
