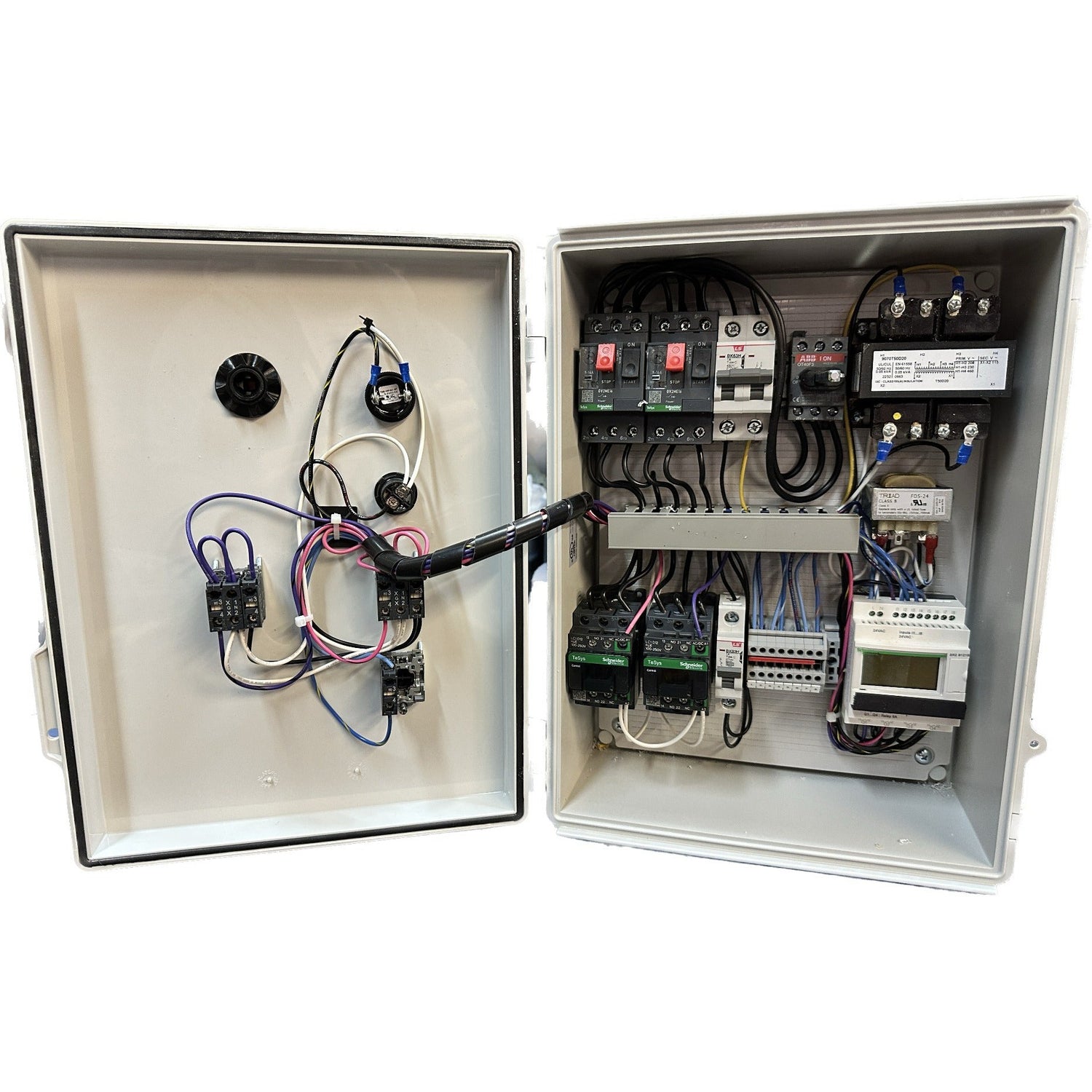

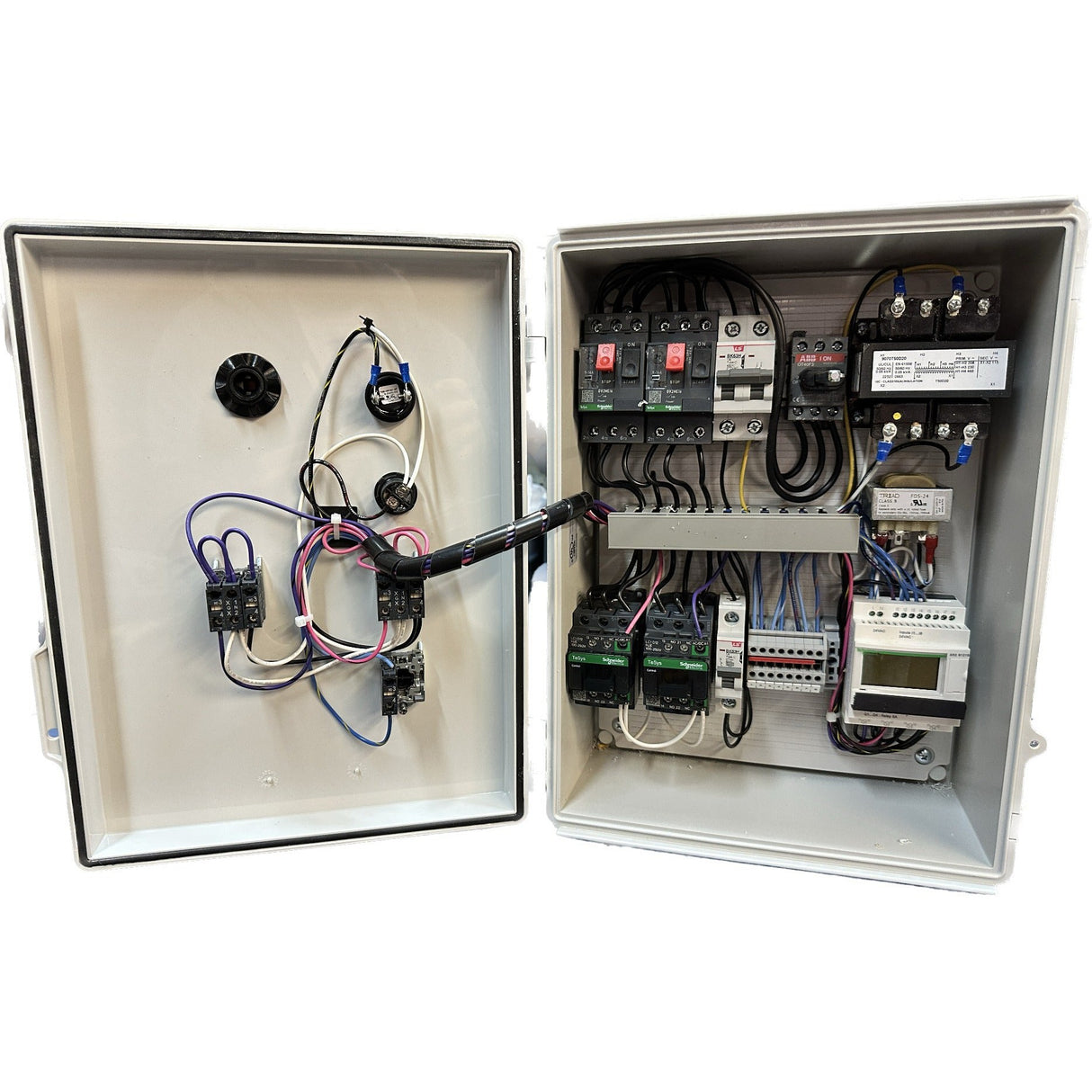

Duplex control panel for Three (3) phase submersible pumps with electronic alternation and high water alarm. 1 H.P. to 3

SKU: AFP-DSP-3
$1,650.00 $2,600.00
Shipping calculated at checkout.
  • 110% Price Match Guarantee
  • Free Shipping
  • Hassle Free Returns
Product Specifications

Three phase control panels for submersible pump applications. Panels are available in 3/220V or 3/460V. Up to 3 H.P. on 3/220V or 10 AMPS.

Application: Control Panels
Model: AFP-DSP-3
Ships Within: Same Day!

Delivery and Shipping

Because of our vast inventory, 99% of all orders placed before 3:30PM EST (on weekdays, holidays do not apply), on our website or over the phone will be shipped the same day. We ship all of our products via UPS and as always, all orders over $ 250 will ship free of charge.Free Shipping does NOT apply to Hawaii or Alaska. Free Shipping on LTL orders (items over 100lbs) , does not include liftgate service, lift gate service would be billed to customer from shipping company.

Description

Air Flow Pump three phase control panels for submersible pump applications. Panels are available in 3/220V or 3/460V. Up to 3 H.P. on 3/220V or 10 AMPS.

Features & Benefits
- NEMA 4 enclosure.
- Square D and ABB components.

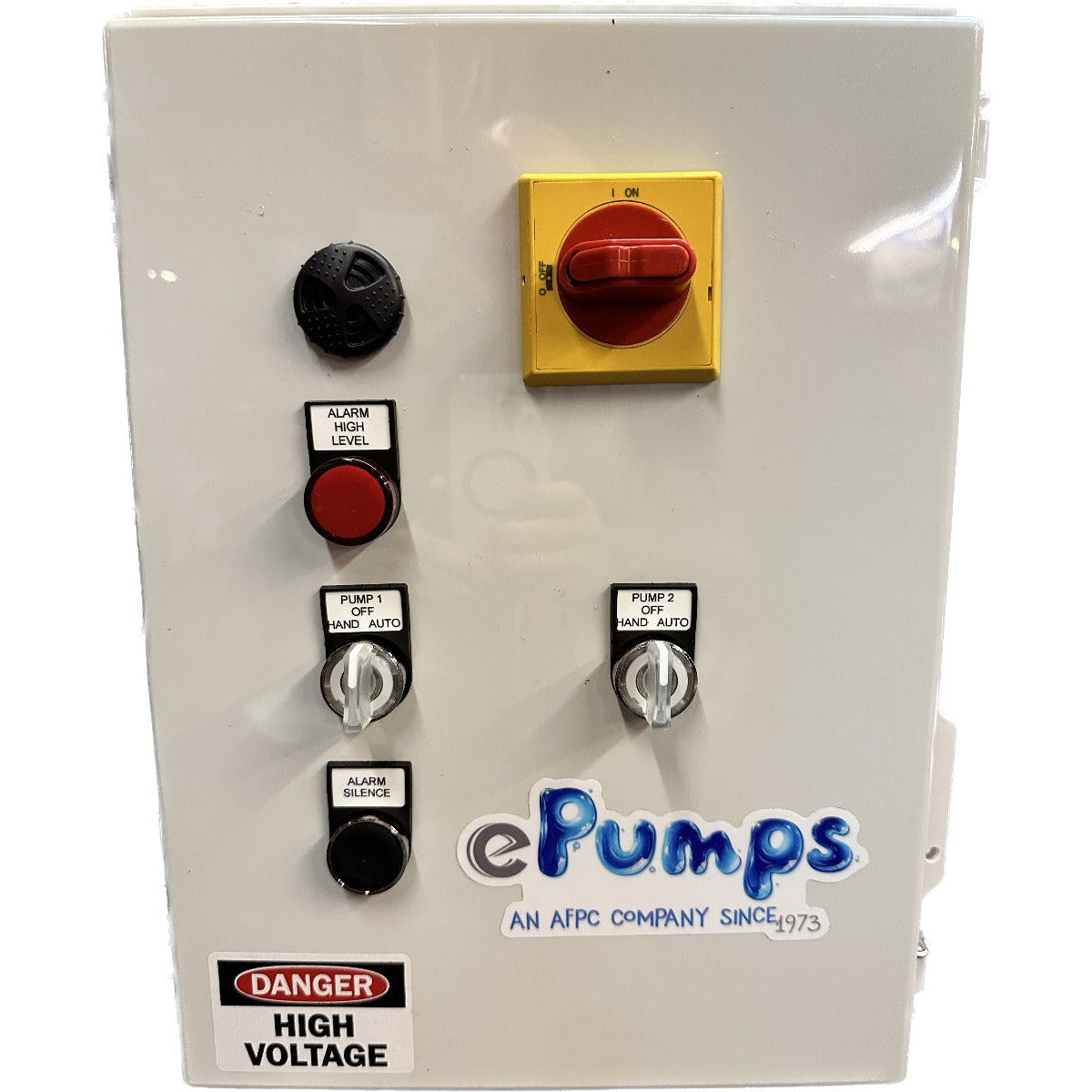

- Pilot run lights with Hand-Off-Auto switches.
- Built in electronic alternation with Lag features, when both pumps must operate.
- 100DB audio and visual alarm for high water conditions.
- Adjustable electronic overloads. No need to change Heaters on different amperage pumps.
- Four float operation: Off, On, Lag and high water alarm.

***NEMA 4X enclosures is available for a NET ADDER***
***Float switches not included***
